Theme variables schema reference

Adjustment of theme is done through theme variables. These variables can be set through Shoutem builder, which interprets the variables schema.

Structure of variables schema file

Variables schema file is nothing else than Shoutem flavored JSON Schema.

Example:

{
  "properties": {
    "primaryColor": {
      "type": "string",
      "format": "color",
      "title": "Primary color",
      "default": "rgba(12, 111, 34, 0.5)"
    },
    "textFont": {
      "type": "object",
      "format": "font",
      "title": "Text font",
      "default": {
        "fontFamily": "rubicon",
        "fontStyle": "normal",
        "fontWeight": "regular",
        "fontSize": 15,
        "color": "rgba(255,255,255,1)"
      }
    }
  },
  "layout": {
    "sections": [{
      "title": "Colors",
      "properties": ["primaryColor"]
    }, {
      "title": "Text",
      "properties": ["textFont"]
    }]
  }
}

It’s properties are the variable descriptors - they describe the variable to the Shoutem builder. For now, there are only 2 types of variables:

• Color - "type": "string", "format": "color"
• Font - "type": "object", "format": "font"

Based on what the type is, descriptor has different fields. However, some fields are shared:

• title: Title of the variable on builder interface.
• default: Default value of the interface control. Value depends on the type.
• disabled: Whether admin can set the variable or not. Defaults to false.

Color

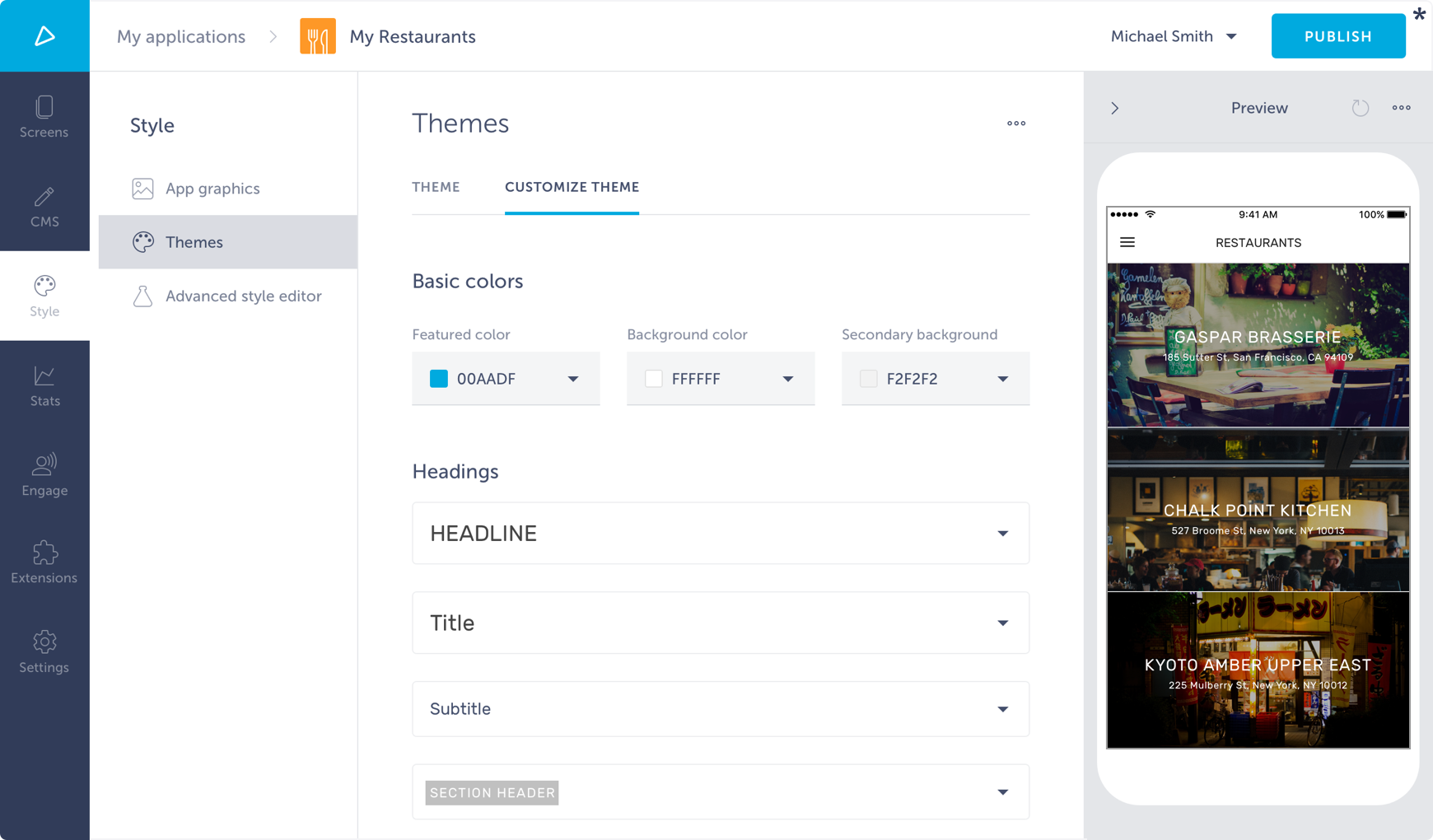

Variable of type color will result in color picker in interface for customizing theme.

Default value

String. One of the React Native supported Color formats.

Fields

Currently, there are no additional properties variable descriptor supports.

Font

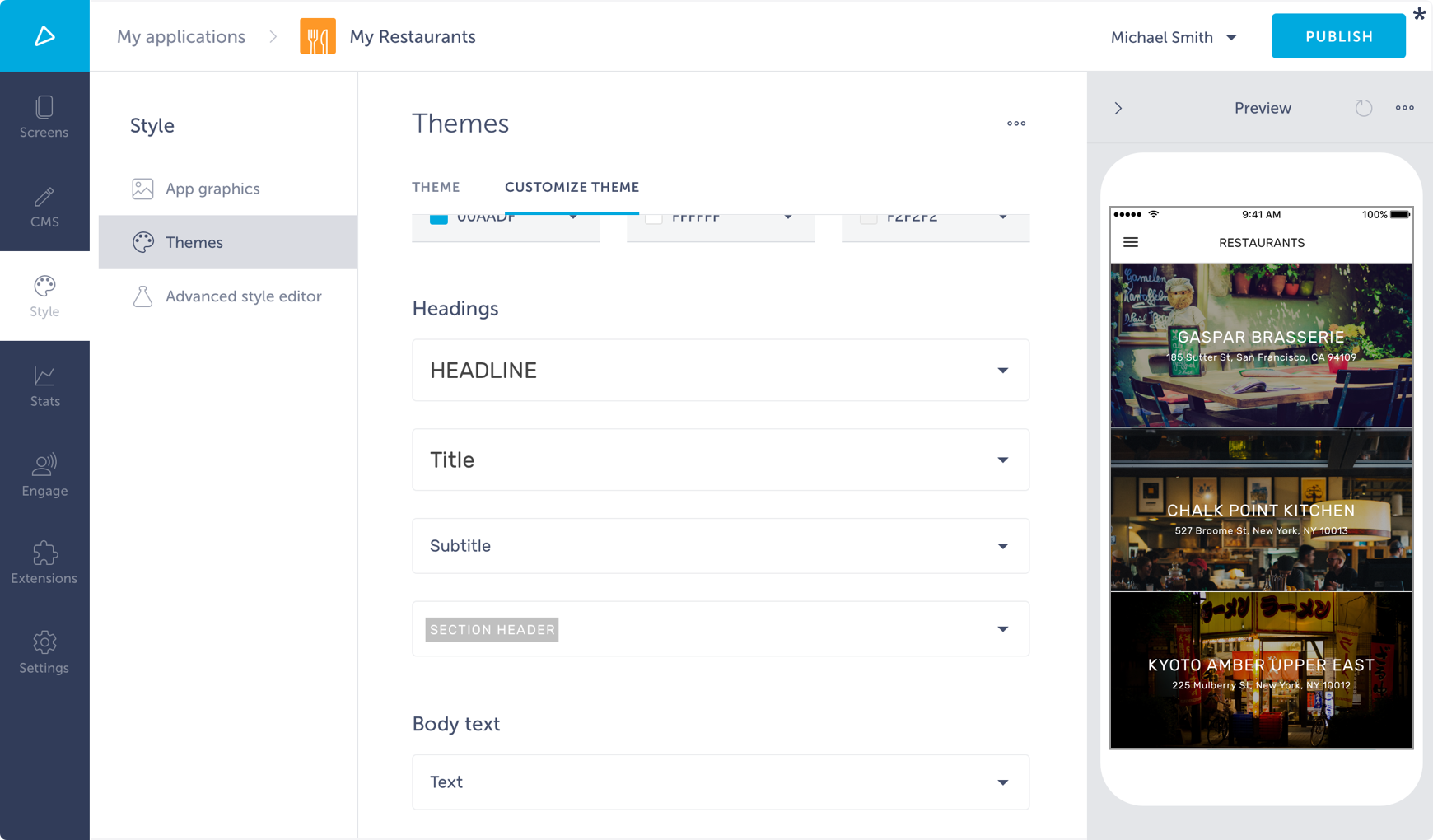

Variable of type font will result in complex control in interface for customizing theme.

Default value

Object with following fields:

{
  "fontFamily": "rubicon",
  "fontStyle": "normal",
  "fontWeight": "normal",
  "fontSize": 20,
  "color": "rgba(255,255,255,1)"
}

• fontFamily - String. Following fonts are supported: Rubicon and Normal (React Native’s default). Defaults to “Rubicon”.
• fontStyle - String. One of: "normal", "italic". Defaults to “normal”.
• fontWeight - String. One of: "normal", "bold", "100", "200", "300", "400", "500", "600", "700", "800", "900"
• fontSize - Number. Defaults to 12
• color - String. One of the React Native supported Color formats. Defaults to "rgba(0,0,0,1)"

Fields

These are the additional properties font variable descriptor supports:

• minFontSize: Minimal font size. Number. Defaults to 8.
• maxFontSize: Maximal font size. Number. Defaults to 42.
